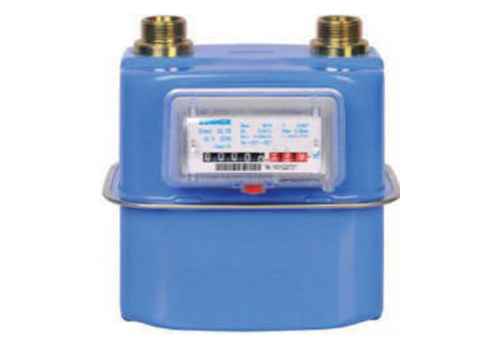

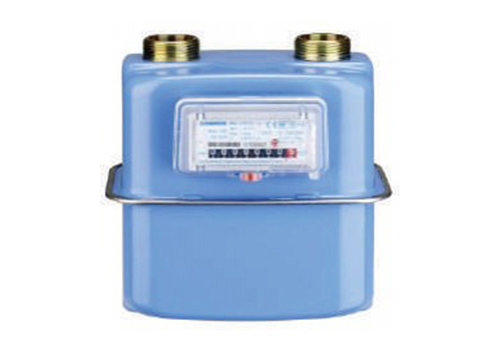

Compact type Diaphragm Gas Meter

Two-pipe, compact, high accuracy and safety, Power-coated galvanized steel

This diaphragm gas meter has a compact look, and its available in sizes G1.6 and G2.5. This diaphragm gas meter is characterized by solid build quality, high accuracy and safety. The external case can be made of power-coated galvanized steel made the diaphragm gas meter resistant to corrosion and high-quality diaphragms result in long life stability- up to 25 years. This gas meter can be used for measuring various gas media like natural gas, town gas, liquid gas, biogas, methane gas, etc.

The integrated calibration system plays a key role in coordinating the optimum gas flow. Even at a low flow rates the extraordinary performance of error curve is guaranteed. This diaphragm gas meter is resistant to contamination with stability of Qmin value thanks to the optimum sliding characteristics of the valves.

Our products meet GB/T5968-1997、 EN1359:1998/A1:2006、 0IML R31:1995 standard requirement.

Features
  • Approved in accordance with MID by NMi
  • 0.8dm³ cyclic volume design, more applicable to G1.6 and G2.5 usage condition, more accurate measurement
  • Constant accurate measurement
  • Fire retardant up to 0.1 bar
  • Working temperature range: -25 °C to +55 °C
  • Starting flow: no higher than 1dm³3/h
  • Retrofittable with pulser
Technical Data
Type G1.6MS G2.5MS
Nominal flowrate Qn m³/h 1.6 2.5
Maximum flowrate Qmax m³/h 2.5 4
Minimum flowrate Qmin m³/h 0.016 0.025
Maximum operating pressure bar 0.5 0.5
Maximum permissible errors 0.1 Qmax ≤ Q ≤ Qmax Qmin ≤ Q < 0.1 Qmax ± 1.5% ± 3% ± 1.5% ± 3%
Max. pressure loss mbar ≤ 2 ≤ 2
Display range max. m³/h 99999.9998 99999.9998
Display range min. m³/h 0.0002 0.0002
Accuracy class class 1.5 1.5
Cyclic volume dm³ 0.8 0.8
Pulse value m3/pulse 0.01 0.01
Weight kg 1.55 1.55
Compact type Diaphragm Gas Meter

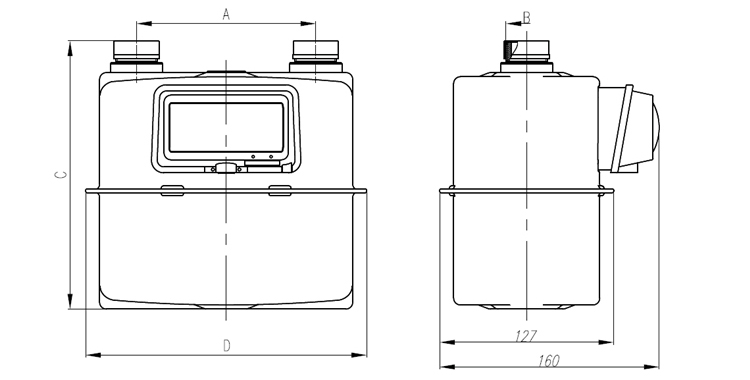

Dimensions Diaphragm gas meter Atmos® G1.6MS | G2.5MS
A [mm] 110 ± 0.50 130 ± 0.50
B M30 x 2 - 6 g M26 x 1.5 - 6 g G¾B G⅞B NPT¾″
C [mm] 189 195
D [mm] 184 @ A=110 204 @ A=130
We are Zenner Metering Technology (Shanghai) Ltd., a company that was established as a joint venture company with German Minol-Zenner Group, a global leading measuring equipment manufacturer as well as a major European energy service provider. Some of our main products include wide-range diaphragm gas meters, wide-range industrial gas meters, smart gas meters, GRPS/NB-IoT module smart gas meters, smart flow meters, and controllers.
