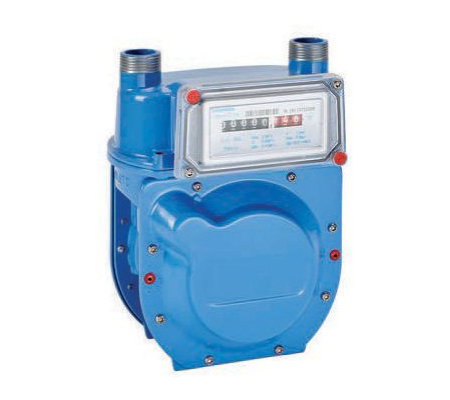

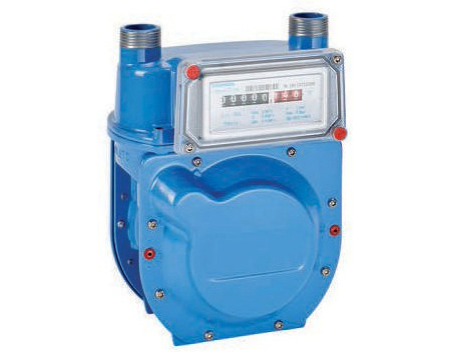

Diaphragm Gas Meter with Aluminum Case

Two-pipe, Temperature compensation, High accuracy and adaptability

This diaphragm gas meter features a solid build quality, an outstanding accuracy and exceptional safety performance. It is available in sizes G1.6 and G2.5 with the external case made of a die-cast aluminum, ensuring the diaphragm gas meter is corrosion resistant with a service life of up to 25 years. This meter also features precise measurements, a constant measuring stability, and an excellent reliability.

The integrated calibration system plays a key role in coordinating the optimum gas flow. Even at low flow rates, the extraordinary performance of error curve is guaranteed. These diaphragm gas meters are resistant to contamination with an excellent stability of the Qmin value thanks to the optimum sliding characteristics of the valves.

This gas meter can be used for measuring various gas media like natural gas, town gas, liquid gas, biogas, methane gas, and other gas types.

Features
  • Integrated system for error curve adjustable
  • Die-cast aluminum case
  • Initial flow rate less than 1 dm³/h
  • Working within the temperature -10 °C and +40°C
  • Operating pressure: 0.5 bar
  • Reverse flow preventer is optional
Parameters
Technical Data
Type G1.6A G2.5A
Nominal flowrate Qn m³/h 1.6 2.5
Maximum flowrate Qmax m³/h 2.5 4
Minimum flowrate Qmin m³/h 0.016 0.025
Maximum operating pressure bar 0.5 0.5
Maximum permissible errors 0.1 Qmax ≤ Q ≤ Qmax Qmin ≤ Q < 0.1 Qmax ± 1.5% ± 3% ± 1.5% ± 3%
Max. pressure loss mbar ≤ 2 ≤ 2
Display range max. m³/h 99999.9998 99999.9998
Display range min. m³/h 0.0002 0.0002
Accuracy class class 1.5 1.5
Cyclic volume dm³ 1.2 1.2
Pulse value m3/pulse 0.01 0.01
Weight kg 1.8 1.8
Diaphragm Gas Meter with Aluminum Case

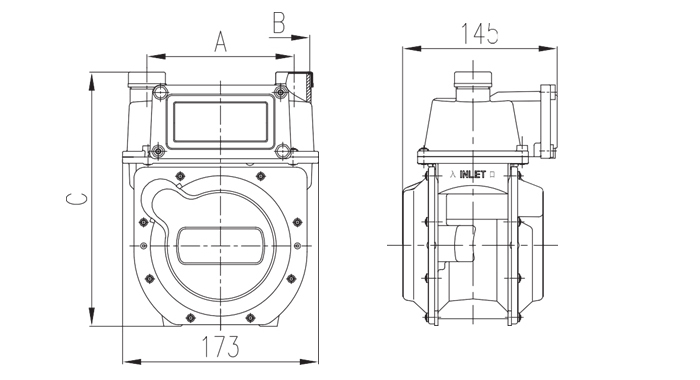

Dimensions
Dimensions Diaphragm
A [mm] 110 ± 0.50 130 ± 0.50
B M26 x 1.5 - 6g M30 x 2 - 6g G¾B G⅞B
C [mm] 225
We are Zenner Metering Technology (Shanghai) Ltd., a company that was established as a joint venture company with German Minol-Zenner Group, a global leading measuring equipment manufacturer as well as a major European energy service provider. Some of our main products include wide-range diaphragm gas meters, wide-range industrial gas meters, smart gas meters, GRPS/NB-IoT module smart gas meters, smart flow meters, and controllers.
