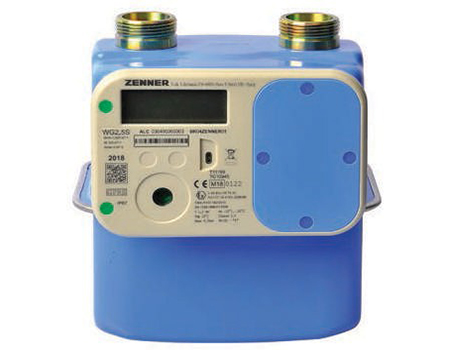

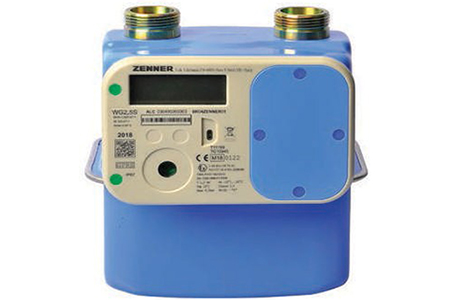

Atmos® - NFC/GPRS / NB-IoT Smart Diaphragm Gas Meter
The GPRS/NB IoT gas meter is a smart gas metering device based on our mechanical diaphragm gas meters. It is equipped with a built-in shut off valve basement and a smart controller with a GPRS/NB-loT communication module.
By connecting to the GPRS/NB-IoT wireless network, the following functions are available:
- Metering data transmitted to a cloud platform for analysis
- Block pricing
- Various Alarms: low balance and low battery alarm, temper alarm, leakage alarm, overflow alarm.
- Remote monitor, remote control
- Remote valve control
- Automatic shut-off valve
- Combined with new media channels to achieve remote charging and real time interaction
Features
- GPRS/ NB-IoT communication technology
- Optical sampling
- Fast shut-off valve
- Lithium battery with more than 10 years for the service life.
Size
- G1.6S-GI:0.016 m3/h to 2.5 m3/h
- G2.5S-GI:0.025 m3/h to 4m3/h G4S-GI : 0.04 m3/h to 6m3/h WG2.5S-GI: 0.016m3/h to 6m3/h
Gas media
- Natural gas
- Town gas
- Biogas
- Liquid gas
- Methane gas
Housing Material
Technical data
Type |
|
|
G1.6S-GI |
G2.5S-GI |
G4S-GI |
WG2.5S-GI |
Nominal flowrate |
Qn |
m³/h |
1.6 |
2.5 |
4 |
2.5 |
Maximum flowrate |
Qmax |
m³/h |
2.5 |
4 |
6 |
6 |
Minimum flowrate |
Qmin |
m³/h |
0.016 |
0.025 |
0.04 |
0.016 |
Maximum operating pressure |
|
bar |
0.5 |
0.5 |
0.5 |
0.5 |
Maximum permissible errors |
0.1 Qmax ≤Q≤ Qmax
Qmin ≤Q < 0,1Qmax
|
|
± 1.5% ± 3% |
± 1.5% ± 3% |
± 1.5% ± 3% |
± 1.5% ± 3% |
Max. pressure loss |
|
mbar |
≤ 2 |
≤ 2 |
≤ 2 |
≤ 2 |
Display range max. |
|
m³/h |
99999.9998 |
99999.9998 |
99999.9998 |
99999.9998 |
Display range min. |
|
m³/h |
0.0002 |
0.0002 |
0.0002 |
0.0002 |
Cyclic volume |
|
dm³ |
1.2 |
1.2 |
1.2 |
1.2 |
Accuracy class |
|
class |
1.5 |
1.5 |
1.5 |
1.5 |
Weight |
|
kg |
2.2 |
2.2 |
2.2 |
2.2 |
Data acquisition |
|
|
Double pulse (0.1m3) or photoelectric direct |
Communication mode |
|
|
GPRS / NB-IoT |
Communication cycle |
|
|
hours, days, months. |
Battery life |
|
|
Lithium battery ≥ 10 years (upload once a day) |
Meter reading success rate per time |
|
|
≥ 99% |
|
|
|
|
|
|
|

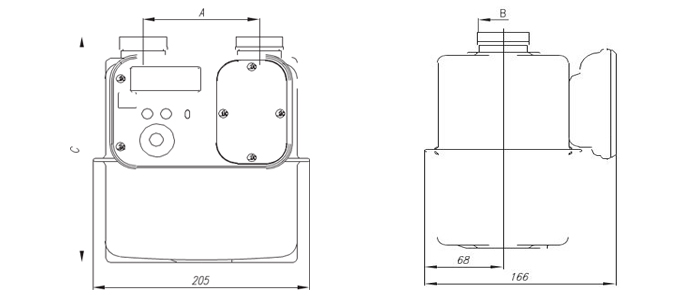

Dimensions
A | 90±0.50; 110±0.50 ; 130±0.50 |
B | M26*1.5-6g; M30*2-6g; G1¼; G1B | G1¼B |
C | 196 | 188 |
