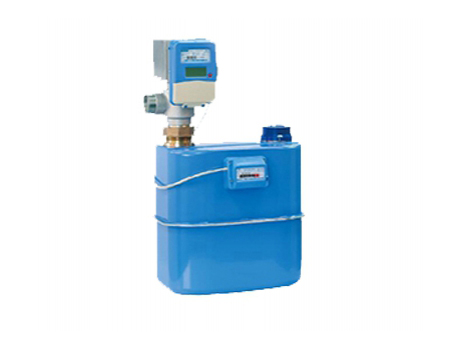

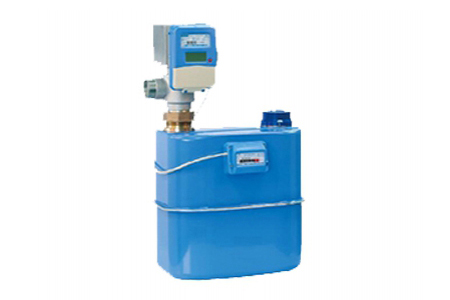

Industrial IC-Card Prepaid Gas Meter with External Valve

The industrial & commercial IC-card prepaid gas meter with external valve from Zenner, a large flow volume gas meter equipped with prepaid and control function. With IC card as information carrier, it features reliable performance, wide-range accurate metering, easy usage, safe, attractive appearance and exquisite. It is applicable for large volume user such as hotel, boiler of the factory, etc. It allows users to prepaid for gas usage and tiered pricing is available. Therefore, it prevents magnetic disruption to steal gas and gas storing. Besides, its function includes optional overdue, message prompts and emergency prompts. With all the advantages mentioned, it is an ideal solution for the problems faced by gas company in household meter reading and charging the users. As such, it helps to improve the management quality and the economic efficiency of gas company.

Features
  • Extremely low power consumption: four segment alkaline battery with lifespan more than one year.
  • External valve: equipped with highly reliable external valve with industrial standard, safe and reliable as well as easy for maintenance.
  • Gas meter reading and user IC card are corresponding one by one to avoid illegal usage, the data transmitted in between are encrypted.
  • Easy operation: simple configuration at the gas meter, intuitive software interface, simple operating step for user to sign up and purchase gas.
  • Adopt wide-range diaphragm gas meter and thus having wide measurement range and wide range of applications as well as effectively reduces the minor gas metering error.
Parameters
Model IG6S IG10S IG16S IG25S IG40S IG65S IG100S
Nominal flowrate (Qn)m³/h 6 10 16 25 40 65 100
Maximum flowrate (Qmax)m³/h 10 16 25 40 65 100 160
Minimum flowrate (Qmin)m³/h 0.06 0.1 0.16 0.25 0.4 0.65 1
Working Pressure (kPa) 0.5~30
Permissible Error 0.1Qmax≤Q≤Qmax ≤±1.5％
Qmax≤Q＜0.1Qmax ≤±3％
Supply Operating Voltage DC6V
Battery lifetime (year) 1
Pulse value (m³/Pluse) 0.1 or 1
Pressure loss (Pa) ≤250 ≤375 ≤500
Quiescent current (uA) ＜30
Maximum current (mA) ＜300
Industrial IC-Card Prepaid Gas Meter with External Valve

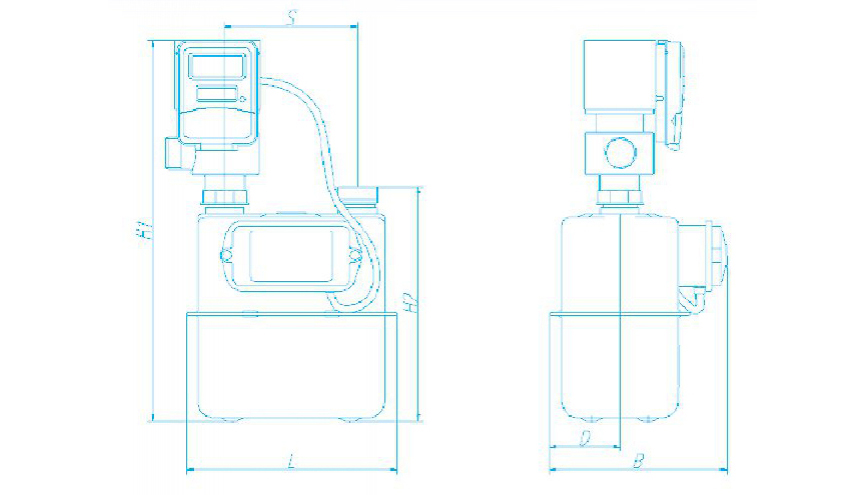

Dimensions
Model IG6S IG10S IG16S IG25S IG40S IG65S IG100S
H(mm) 517 575 623 685 828 990 990
H2(mm) 273.5 327.5 375.5 437 568 730 730
S(mm) 160 200 240 300 320 380 380
L(mm) 254.5 316 355.5 438.8 508 635 635
B(mm) 192 216 238 285.5 420 522 422
D(mm) 85 96 107 132 208 258 258
Thread R1 R1½ R1½ R2 R2 R3 R3
We are Zenner Metering Technology (Shanghai) Ltd., a company that was established as a joint venture company with German Minol-Zenner Group, a global leading measuring equipment manufacturer as well as a major European energy service provider. Some of our main products include wide-range diaphragm gas meters, wide-range industrial gas meters, smart gas meters, GRPS/NB-IoT module smart gas meters, smart flow meters, and controllers.
