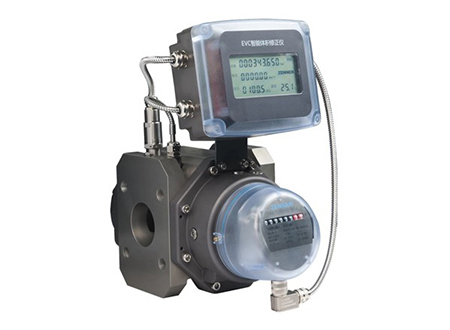

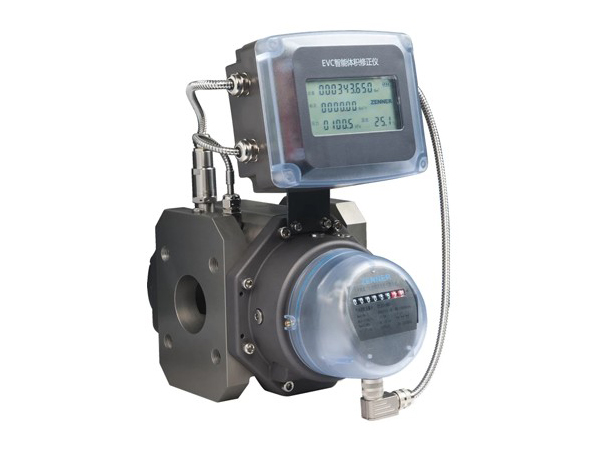

Gas Rotary Flowmeter (EVC)

Zenner provides rotary positive displacement flowmeters built with surface mounting technique which features compact design, high reliability and strong resistant to disturbance. It is integrated with temperature, pressure and flow sensor as well as smart volume corrector. Besides, it is a high reliability and high accuracy measuring instrument that is able to conduct automatic compensation on pressure, temperature and compression factor. Furthermore, it features flameproof and intrinsically safe explosion-proof properties. It is applicable for gas billing in hotel and restaurant, gas metering in transmission and distribution network, gas regulating station metering, industrial and civil boilers, etc.

Features
  • Adopt low power consumption circuit design with internal battery’s service life 5 years and above.
  • Built-in high-performance memory card to save user parameters, factory parameters and history record.
  • LCD display to indicate standard cumulative total volume, standard instantaneous flow rate, medium temperature and pressure as well as date, clear and intuitive, convenient reading.
  • Large flow range, good repeatability, high prevision, small pressure loss, low initial flow rate.
  • Special surface treatment on rotor and shell which feature high hardness and strong wear resistance, do not crash the meter easily.
  • Strict dynamic balance test to ensure product flow stability and service life.
  • Equipped with two wire 4mA ~ 20mA standard current output.
  • With RS485 communication interface, it is easy to connect with the host computer, and each host computer can bring up to 32 flowmeters. RS485 interface can be used with GPRS data collector. Through GPRS, the Ethernet network can realize remote monitoring and data management.
  • Equipped with RS485 communication port to ease the connection to the host computer each with 32 units of flowmeters maximum. The RS485 port is applicable with GPRS data collector. Remote monitoring and data management can be achieved via GPRS.
  • Equipped with pulse output port to allow various pulse output method, applicable with IC card controller.
Parameters
Mode DN (mm) PN (Mpa) Maximum permissible errors Starting flowrate (m³/h) Stopping flowrate (m³/h) Qmax Pressure loss (Kpa) Flange Dimension
Flow range qtm³/h
ZRG16-DN25 25 1~25 2.5 0.6 Accuracy class:1.0 Qmin≤Q<0.1Qmax:±2.0% 0.1Qmax≤Q<Qmax:±1.0% Accuracy class:1.5 Qmin≤Q<0.1Qmax:±3.0% 0.1Qmax≤Q<Qmax:±1.5% 0.08 0.06 0.16 Connection dimension:GB/T919-2010 PN1.6MP
ZRG25-DN40 40 0.6~40 4 1.6 0.06 0.05 0.19
ZRG40-DN50 50 0.4~65 6.5 0.06 0.04 0.22
ZRG65-DN80 80 0.65~100 10 0.06 0.05 0.32
ZRG100-DN80 80 1~160 16 0.1 0.03 0.37
ZRG160-DN80 80 1.6~250 25 0.15 0.1 0.28
ZRG250-DN100 100 2.5~400 40 0.12 0.06 0.39
ZRG400-DN150 150 4.1~650 65 0.3 0.2 0.5
ZRG650-DN150 150 10.1~1000 100 0.8 0.6 0.47

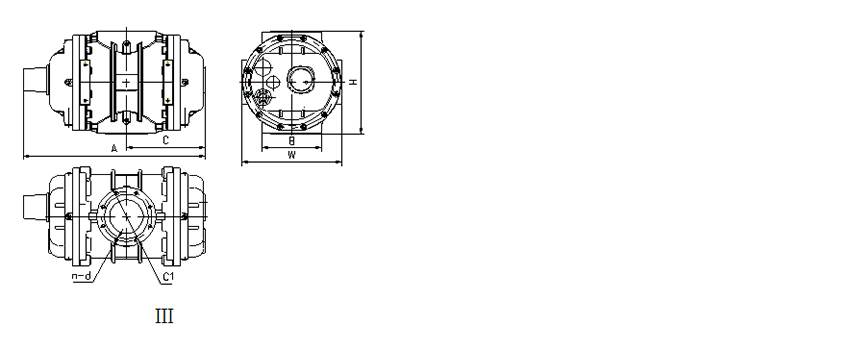

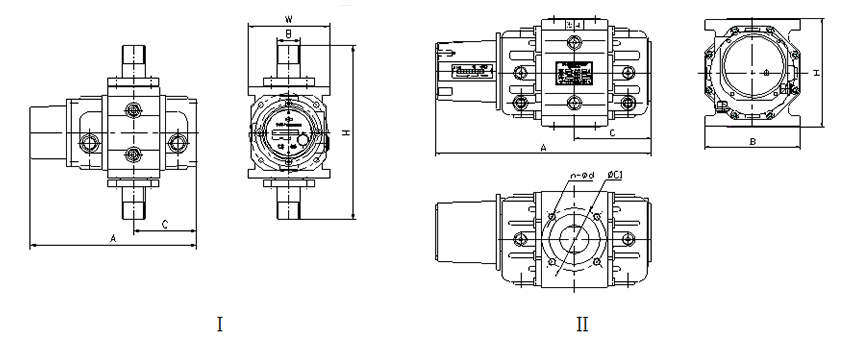

Dimensions

Request for Quotation

You can contact us for a quotation or with any questions you may have on this product.

ZENNER Metering Technology (Shanghai) Ltd.
No.6558 Yinggang East Road, Qingpu District, Shanghai

Contact Us

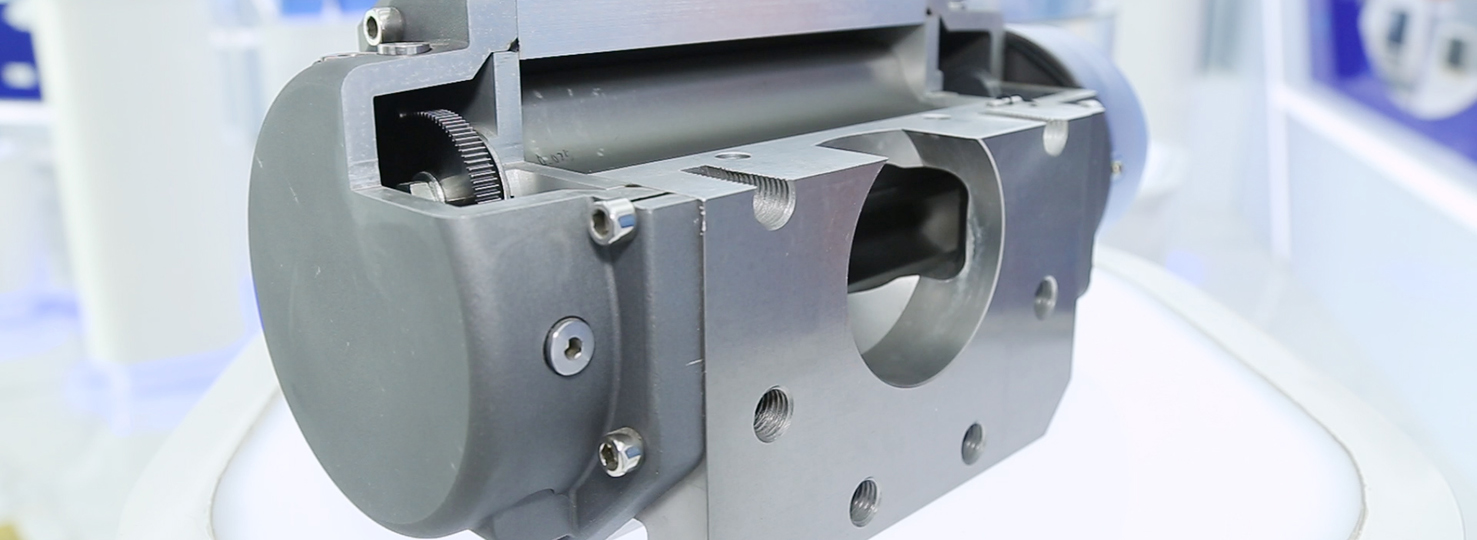

Video
We are Zenner Metering Technology (Shanghai) Ltd., a company that was established as a joint venture company with German Minol-Zenner Group, a global leading measuring equipment manufacturer as well as a major European energy service provider. Some of our main products include wide-range diaphragm gas meters, wide-range industrial gas meters, smart gas meters, GRPS/NB-IoT module smart gas meters, smart flow meters, and controllers.
Tags
Gas Rotary Flowmeter Gas Flow Meters Gas Measurement Device Gas Flow Meters & Controllers
Other Products

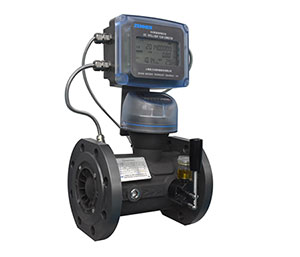

    1. Turbine Flow Meters(TMs)
    2. Turbine Flow Meters(TMs)

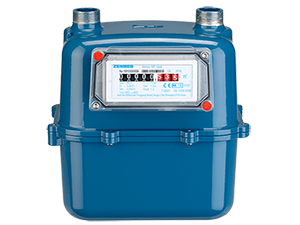

    1. Wide-range Diaphragm Gas Meter
    2. Wide-range Diaphragm Gas Meter

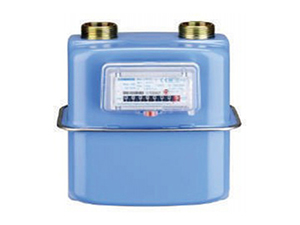

    1. Compact type Diaphragm Gas Meter
