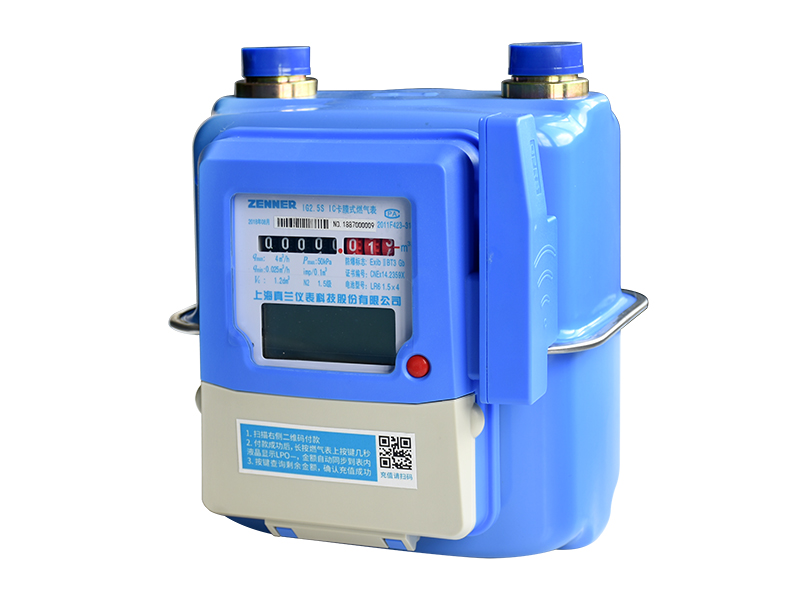

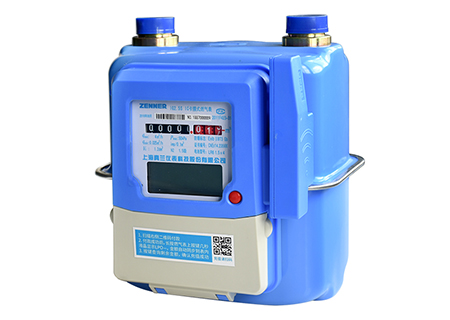

IOT Module Smart Gas Meter

In accordance to the market needs, Zenner developed the IoT module smart gas meter integrated with the Internet of Things technology. It has modular structural design with independent plug in option and IC card gas meter as base (or not IC card). Communication module such as GPRS, NB-IoT is equipped based on your needs and the network coverage at our customers region. Besides, the communication module can be shifted freely and thus features strong adaptability to the network.

Features
  • Allow credit metering and gas metering, can be switched among each other.
  • Allow 24 hours usage sampling for big data analysis.
  • Automatic clock synchronization when connected to the network to ensure clock accuracy.
  • Confirmation on opening the valve upon connected to electricity to ensure safe gas usage. Confirmation is required to open the valve after exception handling completed to ensure normal gas meter operation.
  • Allow tiered pricing in accordance to warm or non-warm season, confirmed according to the gas meter function
  • Self-controlled automatic data upload to the network to identify the usage data of the user.
  • Automatic uploading error report to notify the gas company when exception occurred.
  • Valve can be closed remotely in accordance to emergency incident or payment overdue usage.
  • Allow checking on the user’s history usage remotely
Parameters
Model IG1.6S-GI; IG1.6S-G IG2.5S-GI; IG2.5S-G IG4S-GI; IG4S-G IWG2.5S-GI; IWG2.5S-G
Nominal flowrate（Qn）m³/h 1.6 2.5 4 2.5
Maximum flowrate（Qmax）m³/h 2.5 4 6 6
Minimum flowrate（Qmin）m³/h 0.016 0.025 0.04 0.016
Working Pressure (kPa) 0.5~50
Pressure loss (Pa) ≤250
Maximum permissible errors 0.1Qmax≤Q≤Qmax ≤±1.5％
Qmax≤Q＜0.1Qmax ≤±3％
Accuracy class 1.5
Supply operating voltage Exterior: DC6V (4pcs 5#Alkaline battery); Interior: 3.6V Lithium battery
Quiescent current (uA) ＜30
Maximum current (mA) ＜300
Frequency band GSM/NB-IoT Authorized frequency bands
Environmental working temperature: -10℃~+40℃; storage temperature: -20℃~+60℃; Relative humidity: 5℃~+93℃ (non-condensing)
IOT Module Smart Gas Meter

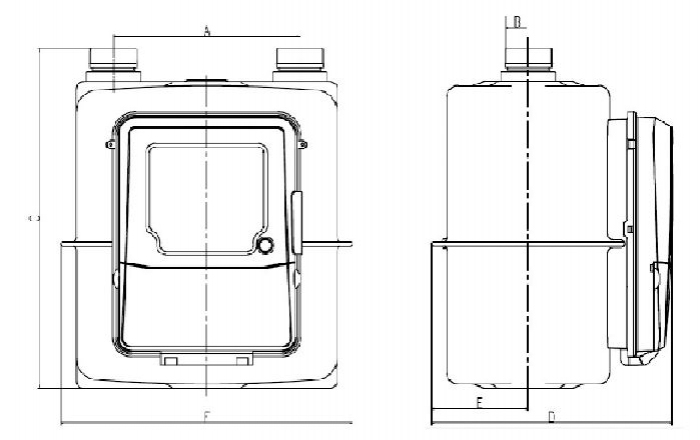

Dimensions
Model A (mm) B (mm) C (mm) D (mm) E (mm) F (mm)
G1.6/2.5/4S/WG2.5S 130±0.5 M30*2-6g 226 68 168 205
G1.6/2.5/4S-JT 130±0.5 M30*2-6g 238.5 68 168 205
We are Zenner Metering Technology (Shanghai) Ltd., a company that was established as a joint venture company with German Minol-Zenner Group, a global leading measuring equipment manufacturer as well as a major European energy service provider. Some of our main products include wide-range diaphragm gas meters, wide-range industrial gas meters, smart gas meters, GRPS/NB-IoT module smart gas meters, smart flow meters, and controllers.
