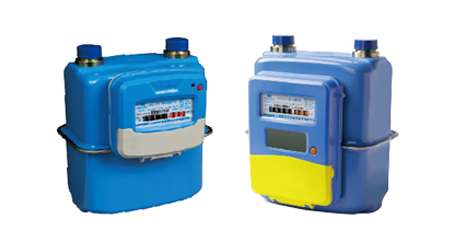

IC-Card Prepaid Diaphragm Gas Meter

Two-pipe IC-Card diaphragm gas meter IG1.6S | IG2.5S | IG4S

IC-Card diaphragm gas meter is a kind of credit gas meters and it can use an encrypted IC card as a data carrier. Our IGS system is designed to optimally adapt to the needs of gas supply companies. The IC-card can read various information such as gas flow, meter status or unusual operating conditions of the meter. That enable the operator to get relevant data from the customer without on-site reading. This IC-Card gas meter can be used for natural gas, town gas, biogas, liquid gas, methane gas.

The integrated calibration system plays a major role in coordinating the optimum gas flow. Even at low flow rates, the gas meter still can do a excellent job with accurate measurement. Even at a low flow rates the extraordinary performance of error curve is guaranteed. This gas meter is resistant to contamination with stability of Qmin value thanks to the optimum sliding characteristics of the valves.

Our IC-Card prepaid diaphragm gas meter comply with requirements of the EN1359:1998/ A1:2006 and OIML R137-1 (2012).

IC-Card Prepaid Diaphragm Gas Meter
Features
  • Prepaid function
  • Overdrawing function
  • Hint and warning function
  • Built-in shue-off value
  • Anti-magnetic interference
  • Integrated system to adjust the error curve
  • Starting flow no higher than 1 dm³/h
  • Working temperature between -25 °C and +55 °C
  • Operating pressure: 0.5 bar
  • Optional: stair gas price
  • Temperature and pressure compensation
  • External Case: Galvanized steel sheet
Parameters
Technical Data
Type IG1.6S IG2.5S IG4S
Nominal flowrate Qn m³/h 1.6 2.5 4
Maximum flowrate Qmax m³/h 2.5 4 6
Minimum flowrate Qmin m³/h 0.016 0.025 0.04
Maximum operating pressure bar 0.5 0.5 0.5
Maximum permissible errors 0.1 Qmax ≤Q≤ Qmax Qmin ≤Q < 0,1Qmax ± 1.5% ± 3% ± 1.5% ± 3% ± 1.5% ± 3%
Max. pressure loss mbar ≤ 2 ≤ 2 ≤ 2
Display range max. m³/h 99999.9998 99999.9998 99999.9998
Display range min. m³/h 0.0002 0.0002 0.0002
Cyclic volume dm³ 1.2 1.2 1.2
Accuracy class class 1.5 1.5 1.5
Weight kg 2.2 2.2 2.2
Working voltage VDC 4.5 / 6 4.5 / 6 4.5 / 6
Battery life year 1 1 1
Pulse value m³/pulse 0.01 or 0.1 0.01 or 0.1 0.01 or 0.1
Quiescent current μA < 20 < 20 < 20
Maximum current mA < 300 < 300 < 300

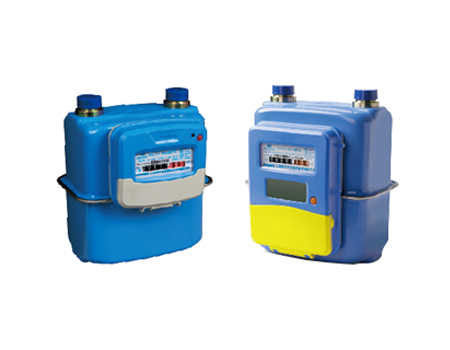

IC-Card Prepaid Diaphragm Gas Meter

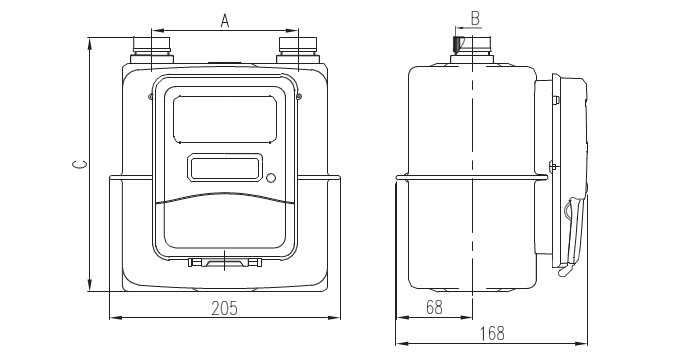

Dimensions
Dimensions Diaphragm
A [mm] 110 ± 0.50 130 ± 0.50
B M30 x 2 - 6 g G¾B G⅞B G1B G1¼B NPT ¾″
C [mm] 218 226
Request for Quotation

You can contact us for a quotation or with any questions you may have on this product.
