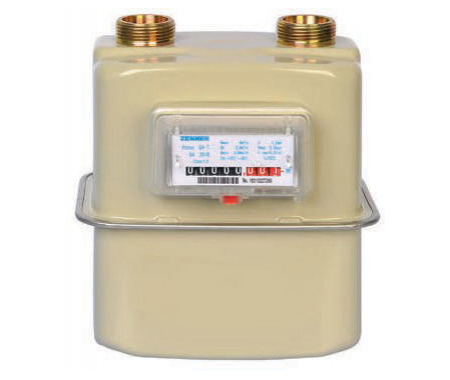

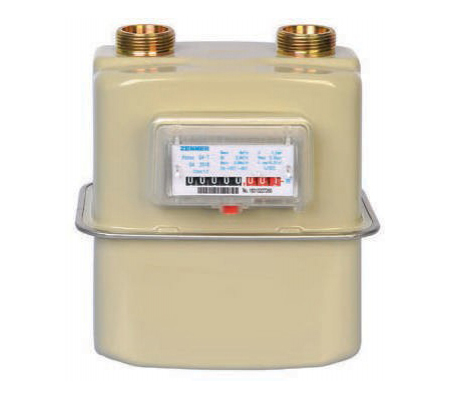

Diaphragm Gas Meter with Temperature Compensation
Two-pipe, Temperature compensation, High accuracy and adaptability
We have three models of this type diaphragm gas meter- G1.6-T, G2.5-T and G4-T, all of the three models can be identified with temperature compensation mechanism. A synthetic bi-metal with different thermal expansion coefficients on the compensation mechanism will be triggered in the condition of the temperature of the gas flow changed. The length of the crank will be changed to adjust the movement of the diaphragm thanks to the bended deformation, thereby the cyclic volume is changed. This structure is designed to counteract volume differences that caused by contraction of gas and thermal expansion. The features mentioned above could improve the diaphragm gas meter's environmental adaptability and the measurement accuracy.
Our Diaphragm Gas Meter with Temperature Compensation can used for measuring various gas media: Natural gas, town gas, liguid gas, biogas, methane gas, etc.
- Temperature compensation for correcting meter readings
- Integrated system for the error curve adjustable
- Galvanized steel powder-coated housing for maximum corrosion resistance
- Operating pressure: 0.5 bar
- Working within the temperature -25 °C and +55 °C
- Fire resistant (HTB) up to 0.1 bar according to EN1359
- Anti-corrosion performance
- Starting flow no higher than 1 dm³/h
- Retrofittable with pulser
| Technical Data | |||||
| Type | G1.6-T | G2.5-T | G4-T | ||
| Nominal flowrate | Qn | m³/h | 1.6 | 2.5 | 4 |
| Maximum flowrate | Qmax | m³/h | 2.5 | 4 | 6 |
| Minimum flowrate | Qmin | m³/h | 0.016 | 0.025 | 0.04 |
| Maximum operating pressure | bar | 0.5 | 0.5 | 0.5 | |
| Maximum permissible errors | 0.1 Qmax ≤ Q ≤ Qmax Qmin ≤ Q < 0.1 Qmax | ± 1.5% ± 3% | ± 1.5% ± 3% | ± 1.5% ± 3% | |
| Max. pressure loss | mbar | ≤ 2 | ≤ 2 | ≤ 2 | |
| Display range max. | m³/h | 99999.9998 | 99999.9998 | 99999.9998 | |
| Display range min. | m³/h | 0.0002 | 0.0002 | 0.0002 | |
| Accuracy class | class | 1.5 | 1.5 | 1.5 | |
| Cyclic volume | dm³ | 1.2 | 1.2 | 1.2 | |
| Pulse value | m3/pulse | 0.01 | 0.01 | 0.01 | |
| Weight | kg | 2.0 | 2.0 | 2.0 | |

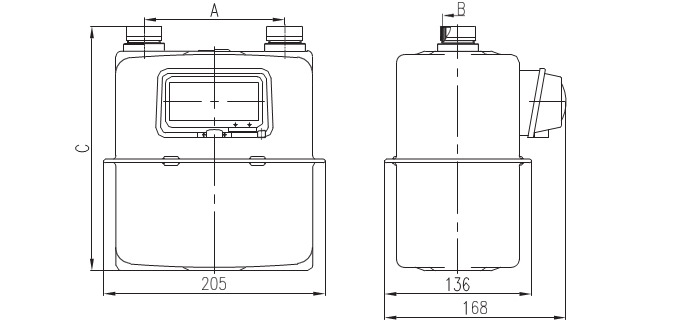

| Dimensions Diaphragm gas meter G1.6-T | G2.5-T | G4-T |
| A [mm] 110 ± 0.50 130 ± 0.50 |
| B M30 x 2 - 6 g G¾B G⅞B G1B G1¼B NPT ¾″ |
| C [mm] 230 238 |
You can contact us for a quotation or with any questions you may have on this product.
