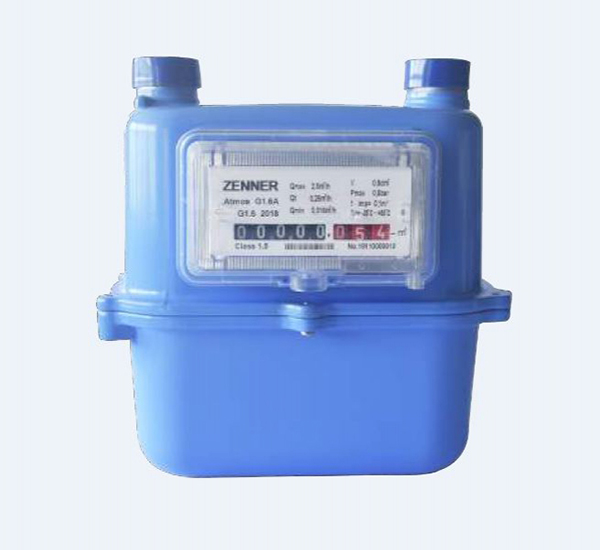

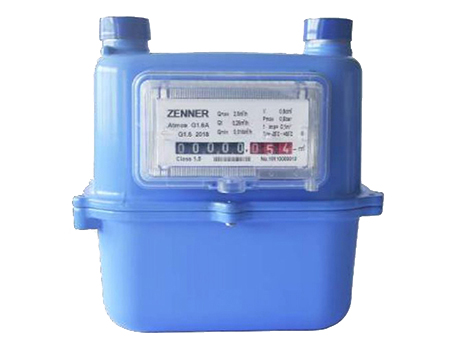

Compact type Diaphragm Gas Meter-MA

Two-pipe, compact, high accuracy and safety, Die-cast aluminum case

This diaphragm gas meter has a compact look, and its available in sizes G1.6 and G2.5. This diaphragm gas meter is characterized by solid build quality, high accuracy and safety. The external case can be made of die-cast aluminum case made the diaphragm gas meter resistant to corrosion with high-quality diaphragms result in long life stability- up to 25 years. This gas meter can be used for measuring gas media like natural gas, town gas, liquid gas, biogas, methane gas, etc.

The integrated calibration system plays a role in coordinating the optimum gas flow. Even at a low flow rates the extraordinary performance of error curve is guaranteed. This diaphragm gas meter is resistant to contamination with stability of Qmin value thanks to the optimum sliding characteristics of the valves.

Our compact type diaphragm gas meter meets GB/T5968-1997, EN1359:1998/A1:2006, 0IML R31:1995 standard requirements.

Features
  • Approved in accordance with MID by NMi
  • 0.8dm³ cyclic volume, suitable for the demand of G1.6 and G2.5
  • Constant accurate measurement
  • Fire resistant (HTB) up to 0.1 bar according to EN1359
  • Working temperature range: -25 °C to +55 °C
  • Starting flow: no higher than 1dm³3/h
  • Retrofittable with pulser
Technical data Atmos®G1.6MA | G2.5MA
Type G1.6MA G2.5MA
Nominal flowrate Qn m³/h 1.6 2.5
Maximum flowrate Qmax m³/h 2.5 4
Minimun flowrate Qmin m³/h 0.016 0.025
Maximum operating pressure bar 0.5 0.5
Maximum permissible errors 0.1 Qmax ≤ Q ≤ Qmax Qmin ≤ Q < 0.1 Qmax ± 1.5% ± 3% ± 1.5% ± 3%
Max. pressure loss mbar ≤ 2 ≤ 2
Display range max. m³/h 99999.9998 99999.9998
Display range min. m³/h 0.0002 0.0002
Accuracy class class 1.5 1.5
Cyclic volume dm³ 0.8 0.8
Pulse value m3/pulse 0.01 0.01
Weight kg 1.55 1.55
Compact type Diaphragm Gas Meter-MA

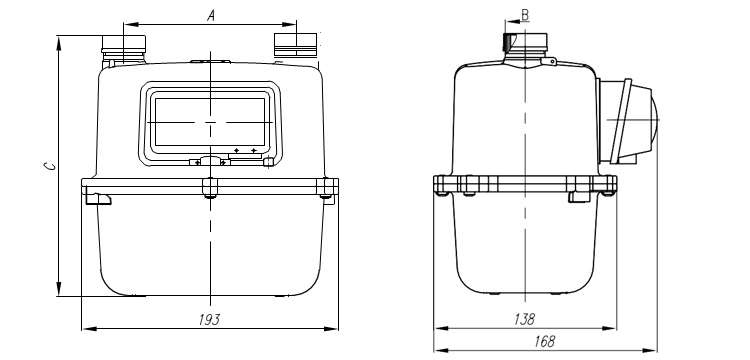

Dimensions Diaphragm gas meter Atmos® G1.6MA | G2.5MA
A [mm] 110 ± 0.50 130 ± 0.50
B M30 x 2 - 6 g M26 x 1.5- 6 g NPT ¾″
C [mm] 196
We are Zenner Metering Technology (Shanghai) Ltd., a company that was established as a joint venture company with German Minol-Zenner Group, a global leading measuring equipment manufacturer as well as a major European energy service provider. Some of our main products include wide-range diaphragm gas meters, wide-range industrial gas meters, smart gas meters, GRPS/NB-IoT module smart gas meters, smart flow meters, and controllers.
